Performance Test

Following an overview of some exemplary hardware configurations and the corresponding tests.

Hardware Configuration Intel Xeon 2488 + Debian 12

CPU Intel Xeon 2488

Frequence 5.6 Ghz

CPU Cores 8

Hyperthreading active

Speedstep active

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs aG711/aG11

Infographic: CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the aG711/aG11 codec.
CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the aG711/aG11 codec.

Hardware Configuration Intel Xeon 2488 + Debian 12

CPU Intel Xeon 2488

Frequence 5.6 Ghz

CPU Cores 8

Hyperthreading active

Speedstep active

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs aG711/aG11 .

Infographic: CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the aG711/uG11 codec.
CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the aG711/uG11 codec.

Hardware Configuration Intel Xeon 2488 + Debian 12 (Media Passthrough)

CPU Intel Xeon 2488

Frequence 5.6 Ghz

CPU Cores 8

Hyperthreading active

Speedstep active

OS Debian 12

anynode version 4.12

Transcoding Mode Media Passthrough

Codecs G711

Infographic: CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the G711 codec.
CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the G711 codec.

Hardware Configuration Intel Xeon 2488 + Debian 12

CPU Intel Xeon 2488

Frequence 5.6 Ghz

CPU Cores 8

Hyperthreading active

Speedstep active

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs Silk 16 Khz/G722

Infographic: CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the Silk 16 Khz/G722 codec.
CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Debian 12, using the Silk 16 Khz/G722 codec.

Hardware Configuration Intel Xeon 2488 + Windows Server 2022

CPU Intel Xeon 2488

Frequence 5.6 Ghz

CPU Cores 8

Hyperthreading active

Speedstep active

OS Windows Server 2022

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs aG711/uG11

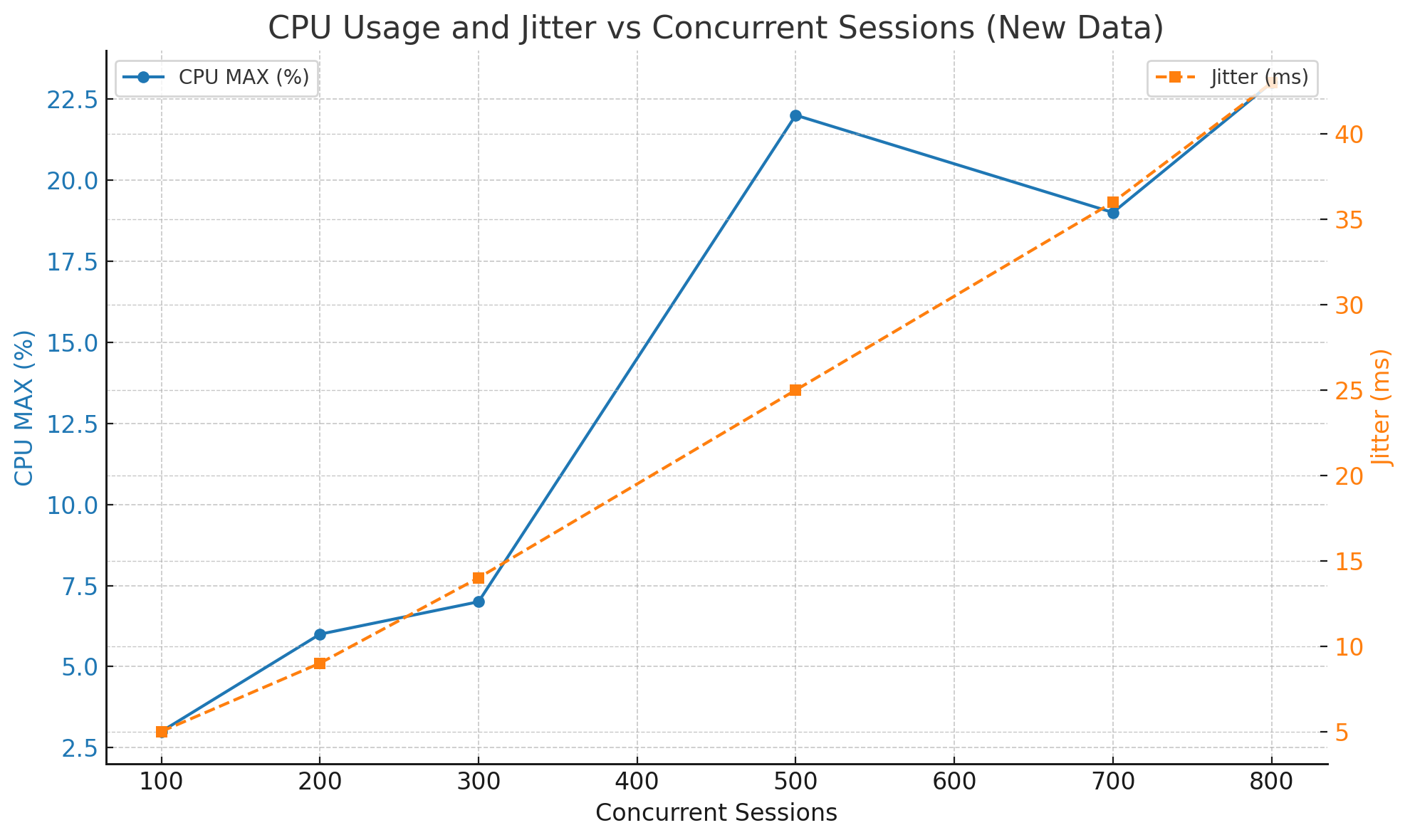

Infographic: CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Windows Server 2022, using the aG711/uG11 codec.
CPU usage and jitter compared to concurrent sessions on Intel Xeon 2488 hardware running Windows Server 2022, using the aG711/uG11 codec.

Hardware Configuration Hyper-V + Debian 12

CPU Xeon E5-2643 V2

Frequence 3.8 GHz

CPU Cores 4

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs aG711/aG11

Infographic: CPU usage and jitter in relation to concurrent sessions on a Hyper-V setup with Debian 12, using codecs aG711 and aG11.
CPU usage and jitter in relation to concurrent sessions on a Hyper-V setup with Debian 12, using codecs aG711 and aG11.

Hardware Configuration Hyper-V + Debian 12

CPU Xeon E5-2643 V2

Frequence 3.8 GHz

CPU Cores 4

OS Windows Server 2022

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs aG711/aG11

Infographic: CPU usage and jitter in relation to concurrent sessions on a Hyper-V setup with Windows Server 2022, using codecs aG711 and aG11.
CPU usage and jitter in relation to concurrent sessions on a Hyper-V setup with Windows Server 2022, using codecs aG711 and aG11.

Hardware Configuration Microsoft Azure + Windows Server 2022 and 2025

Machine Type F2s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 2

OS Windows Server 2022 and 2025

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/G11

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Windows Server 2022 and 2025, using transcoding codecs G711 and G11.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Windows Server 2022 and 2025, using transcoding codecs G711 and G11.

Hardware Configuration Microsoft Azure + Debian 12 A

VM Type Azure

Machine Type F2s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 2

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/G11

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 A, using transcoding codecs G711 and G11.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 A, using transcoding codecs G711 and G11.

Hardware Configuration Microsoft Azure + Debian 12 B

VM Type Azure

Machine Type F2s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 2

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/SILK 8000

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 B, using transcoding codecs G711 and SILK 8000.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 B, using transcoding codecs G711 and SILK 8000.

Hardware Configuration Microsoft Azure + Debian 12 C

VM Type Azure

Machine Type F4s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 4

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/SILK 16.000

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 C, using transcoding codecs G711 and SIL 16000.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 C, using transcoding codecs G711 and SILK 16000.

Hardware Configuration Microsoft Azure + Debian 12 D

VM Type Azure

Machine Type F4s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 4

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/G11

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 D, using transcoding codecs G711 and G11.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 D, using transcoding codecs G711 and G11.

Hardware Configuration Microsoft Azure + Debian 12 E

VM Type Azure

Machine Type F8s

CPU Platinum 8370C series

Frequence 3.4-3.7 Ghz

CPU Cores 8

OS Debian 12

anynode version 4.12

Transcoding Mode Media Transcoding

Codecs G711/G11

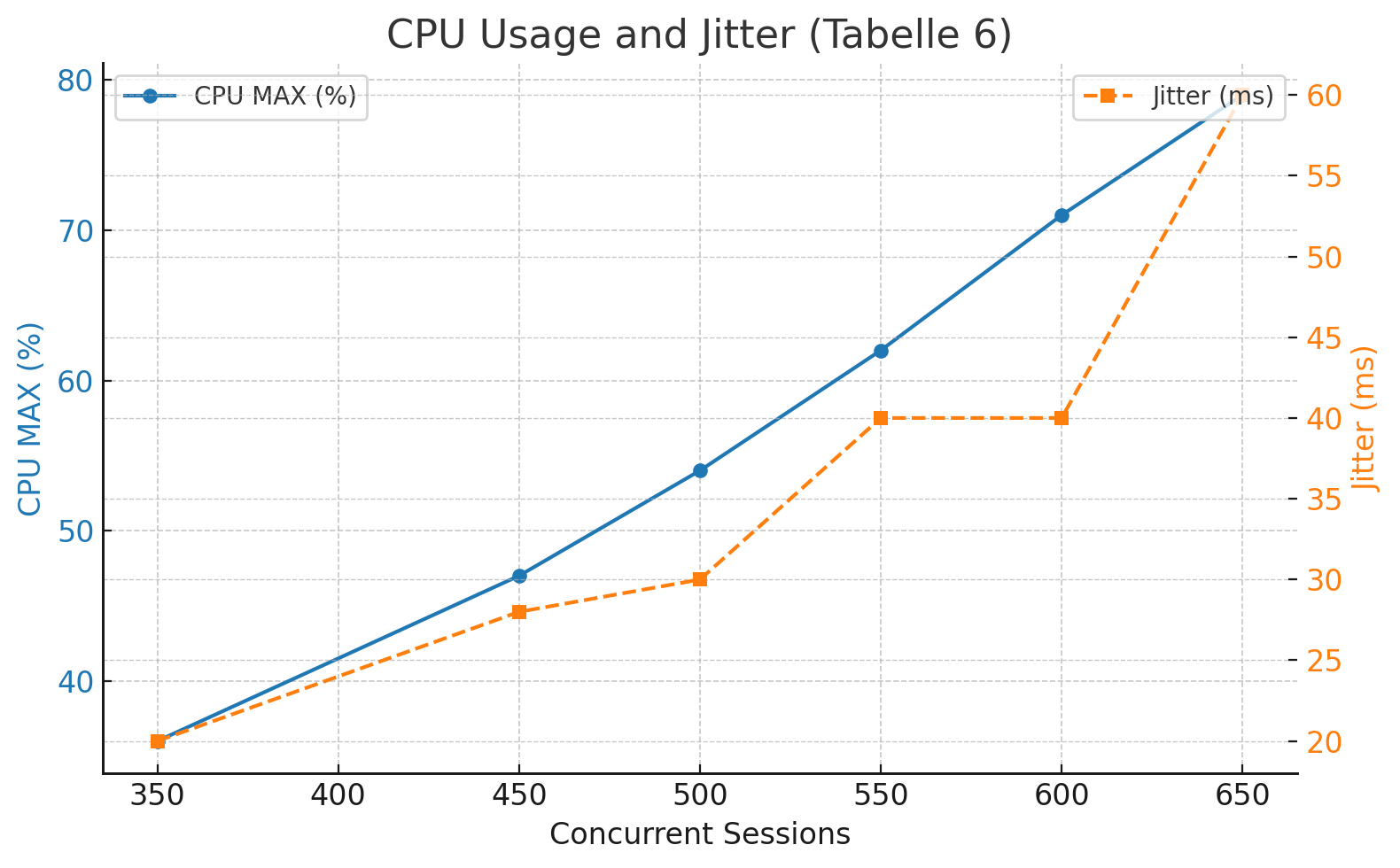

Infographic: CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 E, using transcoding codecs G711 and G11.
CPU usage and jitter in relation to concurrent sessions on Microsoft Azure with Debian 12 E, using transcoding codecs G711 and G11.
