VoIP Environment

The next dialog displays a list of common Voice-over-IP (VoIP) environments. Selecting one of these will configure XCAPI with a set of near-optimal presets for your chosen environment, reducing the need for manual configuration.

If anynode and XCAPI are installed on the same system, it is always recommended to select anynode (on localhost). In this case, communication between the two takes place via the loopback address 127.0.0.1. Select the option without “on localhost” only if anynode and XCAPI are installed on different systems.

In this step, select anynode (on localhost).

Click on Next > to continue.

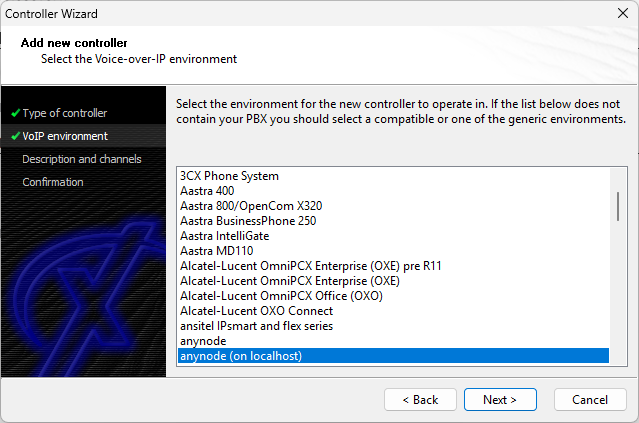

Screenshot: XCAPI controller wizard with list of compatible or generic environments and selected anynode on localhost. Screenshot: XCAPI controller wizard with list of compatible or generic environments and selected anynode on localhost.
XCAPI controller wizard with list of compatible or generic environments and selected anynode on localhost.
