Guided Scenario Setup

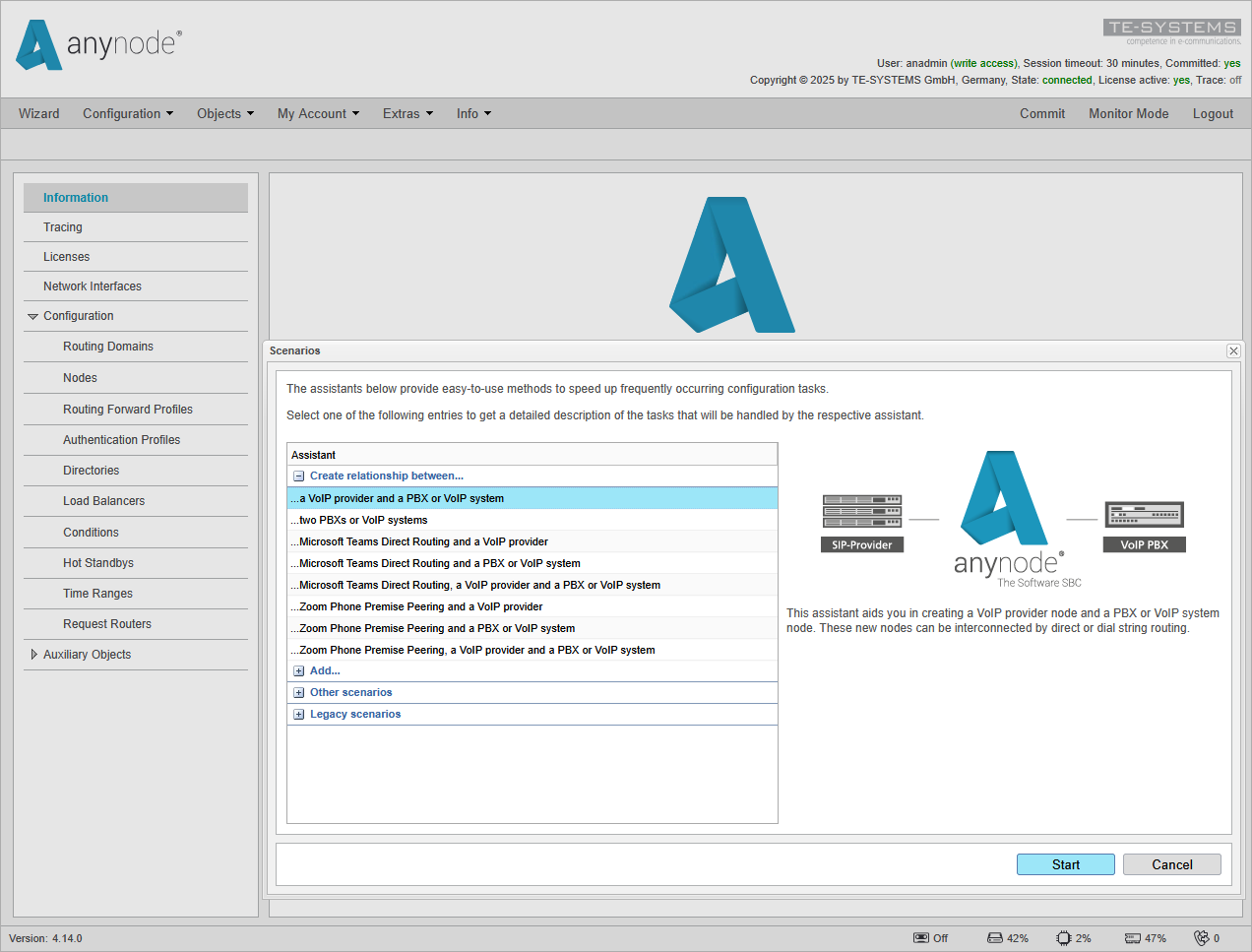

To initiate the guided setup, the anynode Wizard will assist you. In this example, we will be utilizing the OpenScape 4000 and Voice over IP Provider scenario.
For the VoIP provider connectivity, a generic SIP provider template will be used. For the PBX or VoIP system part, the OpenScape 4000 Connect preset is selected.
Once selected, use to run through the configuration tasks of the Node interconnection assistant.

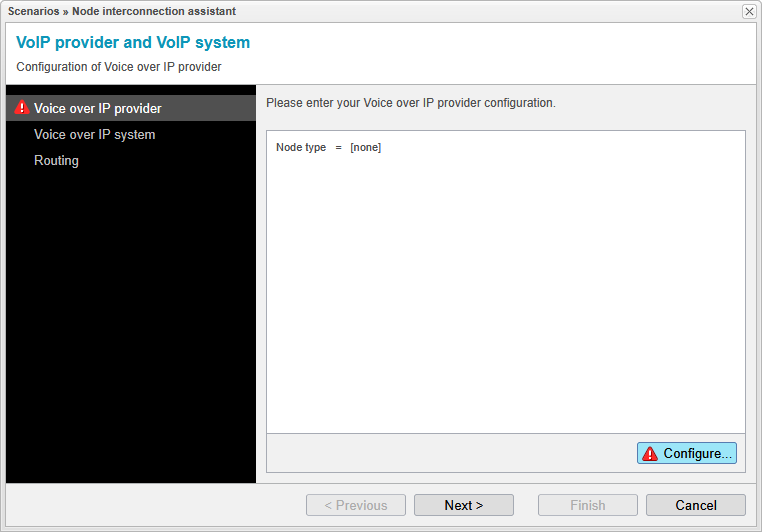

The Node Interconnection Assistant takes care of the configuration process step-by-step, making sure to highlight any incomplete steps with a red exclamation mark on the left menu. On the right side, you will find input forms where you will need to provide user-specific or system-related inputs, which the assistant does not manage automatically. Once you've filled out a form correctly and completely, it will be marked with a reassuring green checkmark.
We recommend following the configuration in the order prescribed by the assistant. However, starting the scenario configuration at any point or selecting individual configuration steps directly from the left menu is also possible.
Nevertheless, as soon as the scenario is launched, the assistant begins with the first Node setup of the selected scenario.
Click to enter and set up the Node configurations.
