SIP Parameters
This WBM page (Configuration > Voice Gateway > SIP Parameters) exposes the gateway’s global SIP settings, which should be reviewed and, if necessary, fine-tuned to support anynode SIP trunking on the configured Mitel OpenScape 4000 node.
For this example, the SIP parameters are configured as shown in the next screenshots.

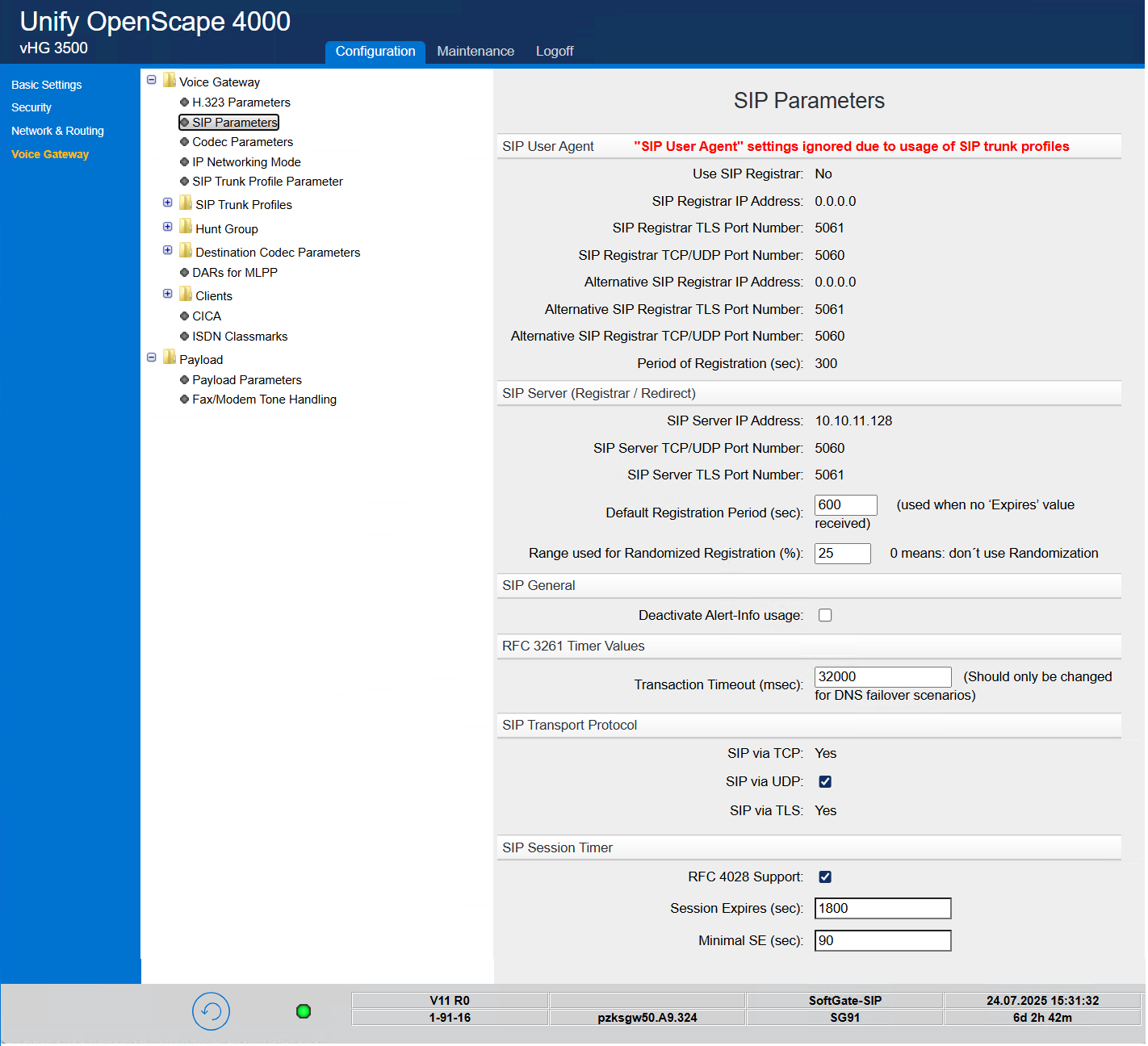

The OpenScape 4000 Web-Based Management shows the first part of the SIP Parameters

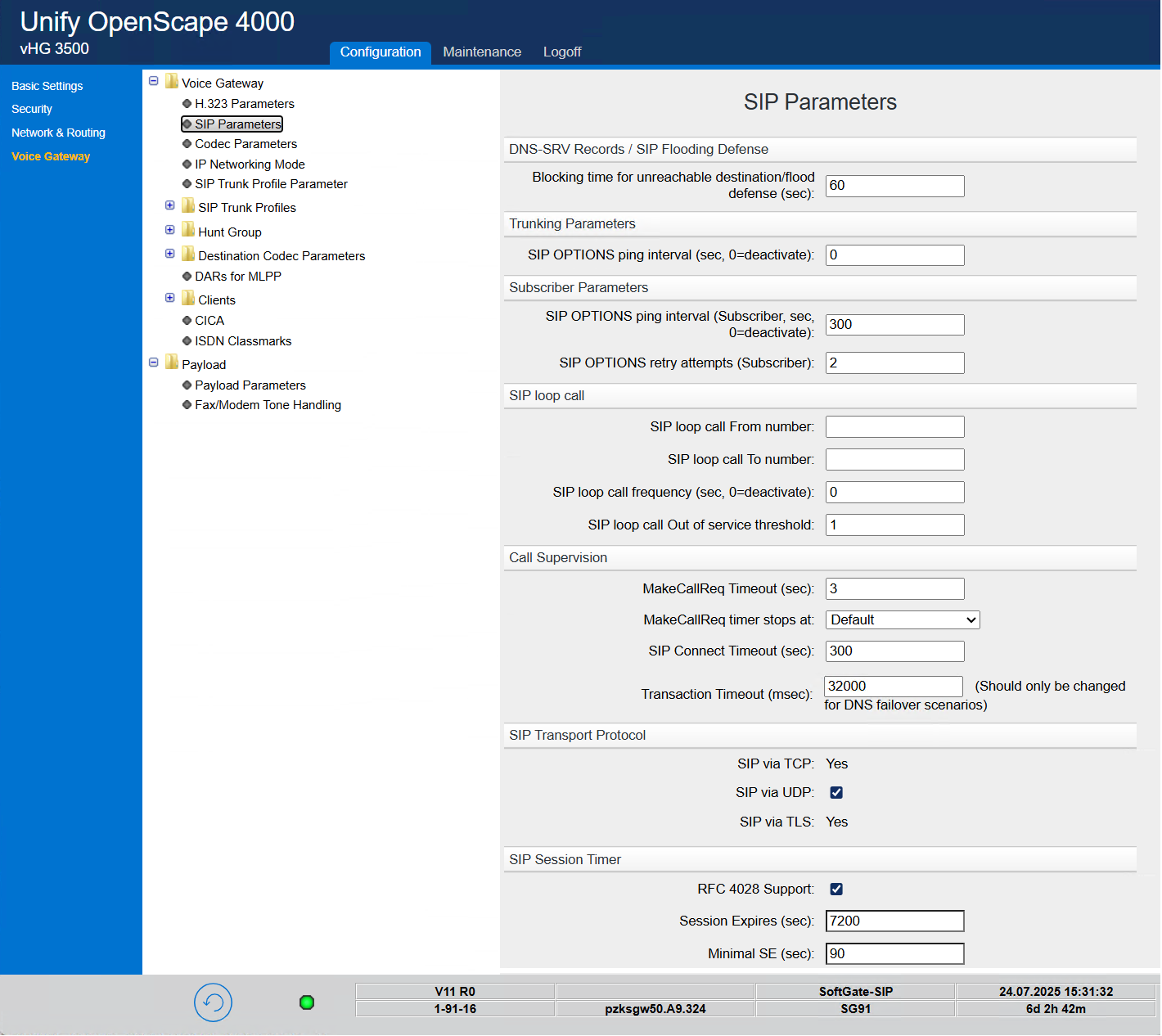

The OpenScape 4000 Web-Based Management shows the second part of the SIP Parameters
